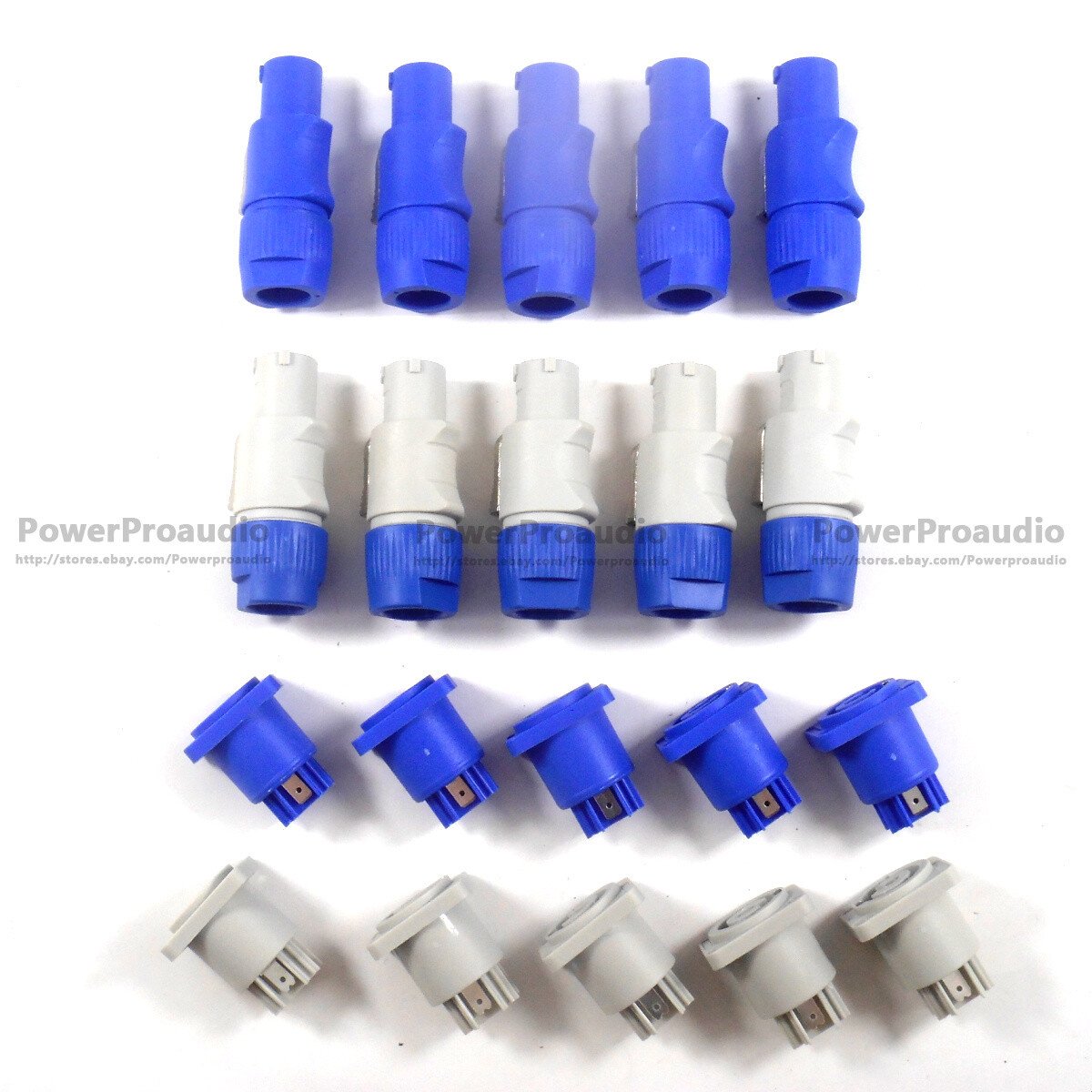

20pcs PowerCON type A NAC3FCA + NAC3MPA-1 chassis housing plug panel adapter

20PCS(10sets)

Specification:

Contact material: phosphor copper / beryllium bronze

Insulation material: environmental protection PE / resistance fuel

Properties: flame retardant

Color: blue, gray

Rated current: 20A

Voltage: 250V

Interface type: AC / DC

Cable specification: 2.5 mm2 ~ 4 mm2 / 14 ~ 12 AWG

Cable diameter range: ~ 8mm ~ 12mm

Diameter * Number of contacts: Ф2.0×3

Contact angle contact resistance: <3 mΩ

Dielectric strength (AC.V) 1 minute: 2500V

Insulation resistance:> 500 MΩ

Protection level: IP44

Durability: ≥500x

Working temperature: -40 ℃ – ~ 80 ℃

Connection mode: block connection

Wiring mode: Lock wire type

Shell, Green-proof Parts: high-performance plastics

Hardware: zinc alloy

Copper needle: copper alloy (gold plating / silver plating)

Waterproof ring: silica gel

Flame retardant grade: UL94-V0

Delivery content:

5sets  blue adapters

5sets  gray adapter
